Register identifier patterns

Datagrok allows you to easily register identifier patterns, attach handlers to them and detect them in text everywhere on the platform. For example, you can register a pattern for CHEMBL identifiers (CHEMBL followed by numbers), attach a handler to it that queries the database for the compound and retrieves its structure to display it in the tooltip or context panel.

Basic approach

The traditional way to register identifier patterns involves manually configuring both the pattern detection and the handler logic. While this approach gives you full control, it requires more boilerplate code and manual setup.

To register an identifier pattern using the basic approach, you need to modify the package.json file of your package (you can use existing or create a new package ) by adding your semantic type metadata with corresponding pattern regex.

{
  "name": "@datagrok/chembl",
  ... package data
  "meta": {
    "semanticTypes": [
      {
        "semType": "CHEMBL_ID",
        "description": "Compound id in the CHEMBL database",
        "parsers": [{
          "regexp": "CHEMBL\\d+"
        }]
      }
    ]
  }
}

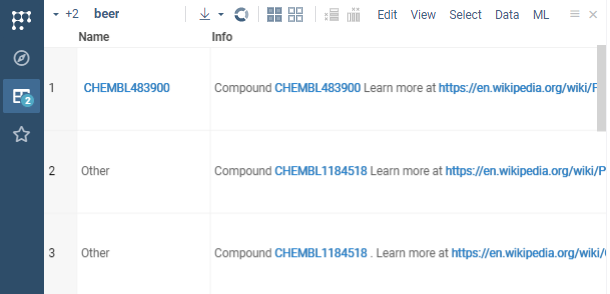

After you registered the pattern in your package and deployed it, Datagrok will identify it in text anywhere on the platform and highlight it.

Now you can register and attach the handler to the semantic type (CHEMBL_ID defined in package.json) to for example retrieve the compound structure from the database.

Create a class that extends DG.ObjectHandler and implement the following methods:

export class ChemblIdHandler extends DG.ObjectHandler {
  get type(): string {return 'CHEMBL_ID';} // must return a semtype

  isApplicable(x: any): boolean {// gets called for each object to check if it's applicable to this handler
    return x instanceof DG.SemanticValue && x.semType == 'CHEMBL_ID';
  }

  renderInnerCard(x: any) {// inner function for querying the database and rendering the card
    const id = (x as SemanticValue).value;
    return ui.divV([
      ui.h3(id),
      ui.wait(async () =>
        ui.bind(x, grok.chem.drawMolecule(await grok.functions.call('Chembl:chemblIdToSmiles', {id: id})))),
    ], {style: {width: '220px', height: '150px'}});
  }
  // gets called when object is coming 'Search everywhere' search and renders card for it
  renderCard(x: any) {
    return ui.card(this.renderInnerCard(x));
  }
  // gets called when object is hovered and renders tooltip for it
  renderTooltip(x: any, context?: any): HTMLElement {
    return this.renderInnerCard(x);
  }

  // gets called when object is clicked and renders properties for it in context panel
  renderProperties(x: any, context?: any): HTMLElement {
    return ui.panels.infoPanel(x).root; // retrieves property panels that are associated with the given semtype
  }
}

Then you need to register the handler in the package.ts file of your package, specifically in the function that autostarts the package:

//tags: init, autostart
export function init() {
  //Register handlers
  DG.ObjectHandler.register(new ChemblIdHandler());
}

After deploying the package, Datagrok will use the handler to query the database and display the compound structure in the tooltip or context panel when you hover over or click on the CHEMBL identifier.

It also allows you to search for the CHEMBL identifier in the Search Everywhere bar and Datagrok will show the compound structure in the search results.

DB-explorer library

For identifiers tied to database tables, the DB-explorer library provides a significantly easier and more powerful way to register identifiers and create rich, interactive exploration experiences. Instead of manually writing handler code, you simply configure the library with your database structure, and it automatically:

• Registers identifier patterns and semantic types
• Creates handlers that query your database
• Builds interactive drill-down views using foreign key relationships
• Renders context panels with all related data from connected tables

This declarative approach eliminates boilerplate code and enables complex database exploration with minimal configuration. It's the recommended method for any identifier that maps to a database entity.

How it works

When you configure the DB-explorer library for your database, the system:

1. Detects identifiers: Automatically recognizes identifier patterns (e.g., CHEMBL1234, DRUG_ID_5678) in your data using regular expressions.
2. Maps to semantic types: Associates each identifier pattern with a semantic type and links it to a specific column in a specific table within your database.
3. Leverages database relationships: Uses the database's foreign key relationships and reference information to understand how tables connect.
4. Enables drill-down exploration: When you click an identifier anywhere in Datagrok, the system automatically:
   • Queries the database for the entity associated with that identifier
   • Displays all related information from the primary table
   • Shows all associated records from related tables (using foreign keys)
   • Renders custom visualizations (molecules, images, etc.) where applicable

This creates a seamless exploration experience where users can navigate complex database schemas without writing queries or understanding the underlying table relationships.

Use cases

The DB-explorer library is particularly valuable for:

• Life sciences: Exploring compound IDs (like ChEMBL IDs), protein identifiers, or assay IDs across chemical databases
• Enterprise systems: Navigating customer IDs, order numbers, or product codes across multiple related tables
• Research databases: Drilling down through experiment IDs, sample codes, or publication references
• Any domain: Where data is spread across multiple related tables and users need to quickly explore connections

Setting up DB-explorer

Click to expand setup instructions

Setting up the DB-explorer library for your database involves creating a plugin, configuring identifier detection, and registering object handlers. Follow these steps:

Prerequisites

Before you begin, ensure you have:

• A database connection configured in Datagrok
• Datagrok Tools installed for plugin development
• Basic knowledge of TypeScript/JavaScript

Step 1: Create a plugin

If you don't already have a plugin, create one:

1. Open a terminal and run:

   grok create <package-name>
2. Follow the prompts to set up your plugin structure.
3. For detailed instructions on plugin creation and publishing, see Develop and Creating a new package.

Step 2: Install the DB-explorer library

Add the DB-explorer library to your plugin:

1. Navigate to your plugin directory.
2. Install the library:

   npm install @datagrok-libraries/db-explorer

Step 3: Create the explorer configuration

Create a configuration file (e.g., src/explorer-config.ts) that defines your database structure and entry points. Here's an example configuration for a ChEMBL database:

export const explorerConfig = {
  // Database connection details
  'connectionName': 'CHEMBL',          // Name of your database connection in Datagrok
  'schemaName': 'public',              // Database schema name where the identifiers are located
  'dataSourceName': 'postgres',        // Data source type (postgres, oracle, mysql, etc.)

  // Entry points: Define identifiers that trigger exploration
  'entryPoints': {
    // Each entry point maps a semantic type to a table column, here, CHEMBL_ID is the name of the semantic type
    'CHEMBL_ID': {                     // Semantic type name
      'table': 'molecule_dictionary',  // Table containing this identifier
      'column': 'chembl_id',           // Column containing this identifier

      // Regular expression example for documentation and autosuggestions in the global search
      'regexpExample': {
        'example': 'CHEMBL1234',       // Example identifier
        'nonVariablePart': 'CHEMBL',   // Fixed prefix
        'regexpMarkup': 'CHEMBL[0-9]+' // Pattern for display
      },

      // Pattern to match identifiers (JavaScript RegExp syntax)
      'matchRegexp': 'CHEMBL\\d+'
    },

    // Numeric identifier example, without regexp detector (meaning that it is detected by some other means on the platform side)
    'molregno': {
      'table': 'molecule_dictionary',
      'column': 'molregno'
    }
  },

  // Join options: Define how to include data from related tables
  // This is useful to easily construct 'cards' for the identifiers that show up in tooltips and panels
  'joinOptions': [
    {
      'fromTable': 'molecule_dictionary',     // Starting table
      'columnName': 'molregno',               // Foreign key column in starting table
      'tableName': 'compound_structures',     // Related table to join
      'onColumn': 'molregno',                 // Key column in related table
      'select': ['canonical_smiles', 'standard_inchi']  // Columns to include from related table
    },
    {
      'fromTable': 'compound_structural_alerts',
      'columnName': 'alert_id',
      'tableName': 'structural_alerts',
      'onColumn': 'alert_id',
      'select': ['alert_name']
    }
  ],

  // Header names: Customize column headers in the exploration view
  // each key is a table name, and the value is the column to use as the header if there are multiple entries
  'headerNames': {
    'action_type': 'action_type',
    'activities': 'type',
    'activity_properties': 'standard_type',
    'assays': 'tid',
    'chembl_id_lookup': 'chembl_id',
    'drug_indication': 'efo_term',
    'drug_mechanism': 'action_type',
    'drug_warning': 'warning_type',
    'molecule_synonyms': 'synonyms',
    'compound_records': 'record_id',
    'compound_structural_alerts': 'alert_name'
  },

  // Unique columns: Specify which column uniquely identifies rows in tables (fallback if db does not contain this information)
  'uniqueColumns': {
    'activities': 'activity_id',
    'compound_records': 'record_id',
    'molecule_synonyms': 'molsyn_id'
  },

  // Custom selected columns: Override which columns to display for specific tables
  // this allows showing more relevant information in tooltips and cards
  'customSelectedColumns': {
    'molecule_dictionary': [
      'canonical_smiles',
      'standard_inchi',
      'molregno',
      'pref_name',
      'chembl_id',
      'structure_type',
      'molecule_type',
      'first_approval',
      'indication_class',
      'chirality'
    ]
  }
};

Configuration parameters explained:

• connectionName: The exact name of your database connection as configured in Datagrok's Database Manager.
• schemaName: The database schema containing your tables (e.g., public, dbo,).
• dataSourceName: The type of database (e.g., postgres, oracle, mysql, mssql).
• entryPoints: Defines the identifiers that trigger database exploration:
  • Key: The semantic type name (used internally by Datagrok to categorize data) (see Semantic types).
  • table/column: Specifies where this identifier lives in the database.
  • regexpExample: Human-readable documentation of the pattern.
  • matchRegexp: JavaScript regular expression to detect this identifier in data.
• joinOptions: Defines additional tables to automatically include when exploring an entity. This creates richer views by combining related data.
• headerNames: Maps table names to user-friendly column names for display purposes.
• uniqueColumns: Tells the system which column uniquely identifies each row in tables that don't have obvious primary keys.
• customSelectedColumns: Overrides which columns to display for specific tables, allowing you to hide irrelevant columns.

Step 4: Create the registration handler

Create a handler file (e.g., src/handlers.ts) to register your configuration:

import * as grok from 'datagrok-api/grok';
import * as ui from 'datagrok-api/ui';
import * as DG from 'datagrok-api/dg';
import {DBExplorer} from '@datagrok-libraries/db-explorer/src/db-explorer';
import {moleculeRenderer} from '@datagrok-libraries/db-explorer/src/renderer';
import {explorerConfig} from './explorer-config';

export async function registerChemblIdHandler() {
  // Initialize DB-explorer from configuration
  const exp = DBExplorer.initFromConfig(explorerConfig);

  if (!exp) {
    grok.shell.error('Failed to load db-explorer config');
    return;
  }

  // Optional: Add custom renderers for specific data types
  // This example adds a molecule renderer for SMILES columns
  exp.addCustomRenderer((_, colName, value) => {
    const lc = colName?.toLowerCase() || '';
    return (lc === 'structure' || lc.includes('smiles')) &&
           typeof value === 'string' &&
           grok.chem.checkSmiles(value);
  }, (value) => moleculeRenderer(value as string));

  console.log('Database object handlers registered');
}

Handler explanation:

• DBExplorer.initFromConfig(): Creates a DB-explorer instance from your configuration.
• addCustomRenderer(): Optionally adds custom visualization for specific data types (e.g., molecules, images, charts).
  • First parameter: A function that checks if the renderer should be used (based on column name and value).
  • Second parameter: A function that returns an HTML element to display the value.

Step 5: Register on plugin startup

Add the registration function to your package's autostart method (e.g., src/package.ts):

import * as grok from 'datagrok-api/grok';
import * as DG from 'datagrok-api/dg';
import {registerChemblIdHandler} from './handlers';

export const _package = new DG.Package();

export class PackageFunctions {
  @grok.decorators.autostart()
  static init() {
    // Register DB-explorer handlers on plugin load
    registerChemblIdHandler();
  }

  // ... other package functions
}

Autostart explanation:

• The @grok.decorators.autostart() decorator ensures this function runs automatically when the platform loads.
• This registers your object handlers, making the system aware of your identifiers immediately.

Step 6: Build and publish

1. Build your plugin:

   npm run build
2. Publish your plugin:

   grok publish <your-stand-alias>
3. The plugin will be uploaded to your Datagrok instance.
4. Once published, the system automatically detects identifiers matching your patterns and enables exploration.

Testing your setup

To verify your DB-explorer is working:

1. Open any dataframe containing your identifiers or just type in your identifier in "Search Everywhere" box.
2. Click on a cell containing an identifier (e.g., CHEMBL1234).
3. Make sure the Context Panel on the right side is open (if not, click on F4)
4. Check the context panel, should see:
   • The primary entity information
   • Associated records from related tables (under links)
5. Click on related identifiers to navigate through the database.

Advanced customization

The DB-explorer library supports additional customization:

• Custom value converters: Transform identifier values before querying (e.g., adding prefixes).
• Additional relationships: Define relationships not captured in database foreign keys.
• Custom info panes: Add completely custom views in the Context Panel.

For more advanced usage, refer to the DB-explorer library source code.

Examples

The ChEMBL plugin provides a complete, real-world example of DB-explorer implementation for exploring the ChEMBL database.
