JavaScript development​

JavaScript or TypeScript-based development is the preferred way to develop user-facing applications on top of the platform. Use the JS API to control pretty much anything within Datagrok, including data manipulation, adding views or viewers, developing custom viewers, registering functions, training and applying predictive models, and even building custom apps.

There are two options to run custom JavaScript code. For ad-hoc scripts, use the built-in JavaScript editor (Functions | Scripts | New JavaScript Script). For reusable functions, viewers, and applications, use the packaging mechanism, which is the focus of this article.

This article describes what a package is, as well as techniques for developing, debugging, publishing and using documentation.

Packages​

A package is a versionable unit of content distribution within Datagrok. Essentially, it is a folder with files in it. A package might contain different things:

See our GitHub repository for examples, or follow the step-by-step guide for creating your own package.

Package structure​

The simplest JavaScript package consists of the following files:

filedescription
package.jsonmetadata
package.jsentry point
detectors.jsdetectors file
webpack.config.jswebpack configuration
README.mdpackage summary
package.pngpackage icon

In addition to that, it might contain the following folders:

package.json​

package.json contains metadata, such as name, version, and dependencies:

{
  "name": "sequence",
  "fullName": "Sequence",
  "version": "0.0.1",
  "description": "Support for DNA sequences",
  "dependencies": {
    "datagrok-api": "latest"
  },
  "devDependencies": {
    "webpack": "latest",
    "webpack-cli": "latest"
  },
  "scripts": {
    "debug-sequence": "webpack && grok publish",
    "release-sequence": "webpack && grok publish --release",
    "build-sequence": "webpack",
    "build": "webpack"
  }
}

The package template first includes only one dependency — datagrok-api. You can add more packages to the dependencies list and install them via npm install.

The file package.json also contains scripts for debugging and publishing your package.

package.js​

Next, let's take a look at the src/package.js file:

import * as grok from 'datagrok-api/grok';
import * as ui from 'datagrok-api/ui';
import * as DG from "datagrok-api/dg";

export let _package = new DG.Package();

//name: test
export function test() {
  grok.shell.info(_package.webRoot);
}

Note that Datagrok API modules are already imported. They are also set as external modules, so that Webpack will not include them to the output. You can include other libraries or packages, as all of them will be built-in a single bundle file. If you choose to include other files, such as CSS, in your package, import them into package.js as well.

During the publishing step, the contents of package.js get parsed, and functions with the properly formatted headers are registered as Grok functions . By annotating functions in a specific way, it is possible to register custom viewers, widgets, renderers, converters, validators, suggestions, info panels, and semantic type detectors. If function has more than one output, it must return JS object {param1: value, param2: value}:

//name: test
//output: string s1
//output: string s1
export function test() {
  return {s1: 'a', s2: 'b'};
}

detectors.js​

detectors.js is a JavaScript file. It should define a class named <package_name>PackageDetectors that subclasses DG.Package. It is similar to package.js but intended for smaller functions — semantic type detectors. Datagrok calls these functions each time the user opens a table. Detectors will be uploaded separately from the rest of the package and used to quickly inspect the data and determine the semantic type of the columns. Semantic type tagging allows the platform to offer specific functions for data of a particular type.

Below, there is an example of a package Sequence containing a single detector detectNucleotides:

class SequencePackageDetectors extends DG.Package {

  //tags: semTypeDetector
  //input: column col
  //output: string semType
  detectNucleotides(col) {
    if (col.name.startsWith('nuc')) {
      col.semType = 'nucleotides';
      return 'nucleotides';
    }
    return null;
  }
}

Once registered, this function is now available across the whole platform, and can be used for semantic type detection.

webpack.config.js​

The package is built according to its configuration file, which typically has the following content:

const path = require('path');

module.exports = {
  mode: 'development',  // set to "production" to minify the output and enable optimizations for production builds
  entry: {
    package: './src/package.js'  // the package is limited to exactly one entry point
  },
  devtool: 'inline-source-map',   // enhances package debugging in the browser devtools
  externals: {                    // external modules won't be loaded to the output, but taken from the environment
    'datagrok-api/dg': 'DG',
    'datagrok-api/grok': 'grok',
    'datagrok-api/ui': 'ui',
    'openchemlib/full.js': 'OCL',
    'rxjs': 'rxjs',
    'rxjs/operators': 'rxjs.operators',
    'cash-dom': '$',
    'dayjs': 'dayjs',
    'wu': 'wu',
    'exceljs': 'ExcelJS',
  },
  output: {
    filename: '[name].js',
    library: 'sequence',     // the name of the package in lower case
    libraryTarget: 'var',    // the results will be assigned to a variable `sequence`
    path: path.resolve(__dirname, 'dist'),
  },
};

Have a look at the Webpack documentation in case you need to modify or extend the provided options. For instance, you can add CSS and other file loaders to module.rules. When the package is loaded, the output gets assigned to a variable ( type window.<package_name>, e.g. window.sequence, in the browser's console just to check). Finally, note that the package name have reoccurred in multiple files, including this one. This might become important if you are going to introduce changes to the code or, for example, rename the package without creating it from scratch. In this case, make sure the name is accurately substituted: set the name field in package.json and library in webpack.config.js to the desired name in lower case, and rename a class <package_name>PackageDetectors using camel case in detectors.js.

Naming conventions​

Continuing the topic we have just touched on, here are naming guidelines and general recommendations that you might consider:

  • Use upper camel case for package names, for example, ApiSamples and OctaveScripts. Package names that comply with the rules for npm packages, e.g. api-samples and octave-scripts, are accepted as well. That being said, you can still write the desired name in the fullName field of package.json
  • When defining new views and viewers, we recommend postfixing your classes with View and Viewer respectively
  • Functions that register an application don't need an App prefix/postfix. Split multi-word names with spaces and use title case, e.g., Test Manager instead of testManagerApp.
  • The names of semantic type detectors typically start with the detect prefix, e.g., detectNucleotides or detectRDSmiles
  • Filenames can be written in lower case, with dashes between words: tika-extractor.py and chord-viewer.js

Development​

A JavaScript package runs inside the Datagrok platform, which makes the development and debugging experience different compared to the more traditional web applications. Essentially, the packages are developed locally, but the platform runs remotely. To enable the best possible experience for developers, we established a workflow where the package is uploaded to the remote server at startup, and then gets served from the server. By associating local JavaScript files with the remote sources in your favorite IDE, it is possible to hide the complexity of that scenario. For instance, you can set breakpoints, do step-by-step execution and generally debug the program in the regular way. Of course, you can always use the debugger that comes with the browser.

To develop Datagrok packages, we recommend that you start with creating a package template. Then, set up your IDE in such a way that when starting a project, it would publish the package, and then start the platform.

Packages deployed in the development mode are visible only to the authors. This ensures that multiple people can simultaneously work on the same package.

General notes on package development​

Our approach to extending the system is providing one canonical, convenient way for developers to achieve the task, at the same time exposing enough extension points to enable deep customization. Same concepts apply to JavaScript development. We do not impose any requirements on the UI frameworks or technologies used for the JavaScript plugins, although we encourage developers to keep it simple.

To simplify development, Datagrok provides an Inspector tool (Alt + I) that lets developers peek under the hood of the platform. Use it for understanding which events get fired and when, how views and viewers are serialized, what is getting stored locally, what widgets are currently registered by the system, etc.

Environments​

In order to isolate packages being debugged from the production instance, we recommend running them against the dev instance, if possible. To change Datagrok's server, add a new developer key to your local config.yaml and edit the scripts section in the package.json file.

Publishing​

Version control​

Each package has a version number. All objects inside the package are being deployed according to the package version. When a package gets published, a "published package" entity gets created. It is associated with the package, and has additional metadata (such as publication date). Typically, only one version of a package is visible to a user. Administrators can manage published packages and decide which versions should be used. It is possible to roll back to an older version, or assign a particular version to a particular group of users.

Importantly, if the version changes, there will be an independent instance of each package asset. Multiple versions of a package can be deployed at one moment, and the administrator can switch between them. All users will only see objects that belong to the current package version.

There is a special debug version that can be deployed for each package. If the developer applies it, it becomes active for the current package until the developer deletes it or changes their developer key. In this case, the developer can see objects from their version of package, and changes will not affect other users package representation. This version will no longer exist after the developer releases their package.

Building package​

Webpack is required for your package source code to work successfully in the browser. You need to build your package with webpack locally. To do that, run the script "build": "webpack" before publishing. For convenience, publication scripts in package.json combine these two steps: webpack && grok publish. The build script is reserved for server-side build, so don't change or remove it. The platform will build a package on the server side, if you call grok publish with the --rebuild option.

Publishing modes​

Use the following flags to specify who can access your package:

  • In --debug mode, packages are accessible by the developer only (default).
  • In --release mode, packages are accessible by everyone who has the privilege.

To publish a package, open the package.json file in your IDE. Typically, the scripts section would contain several scripts generated for your package based on the contents of config.yaml. For development purposes, use the scripts having the debug word in their name. For production, use the alternative scripts starting with deploy instead.

"scripts": {
"debug-sequence": "webpack && grok publish",
"release-sequence": "webpack && grok publish --release",
"build-sequence": "webpack",
"build": "webpack",
"debug-sequence-dev": "webpack && grok publish dev",
"release-sequence-dev": "webpack && grok publish dev --release",
"debug-sequence-local": "webpack && grok publish local",
"release-sequence-local": "webpack && grok publish local --release"
}

Alternatively, you can run these scripts with npm run. If you have any questions, type grok for instructions or grok publish --help to get help on this particular command.

In addition, you can pass another server either as URL or server alias from the config.yaml file:

grok publish dev
grok publish https://dev.datagrok.ai/api --key <dev-key>

Make sure to specify the developer key for a new server.

Source control​

Packages can be deployed from Git as well as other resources, which allows for convenient team collaboration and version management. See the full list of source types in the Package Browser (Manage | Packages | Add new package).

When developing a package with your team, it's a good idea to commit code to the repository first and then publish your package from there. Our public GitHub repository is a telling example of this workflow. We also welcome contributions, which you can learn more about in this article.

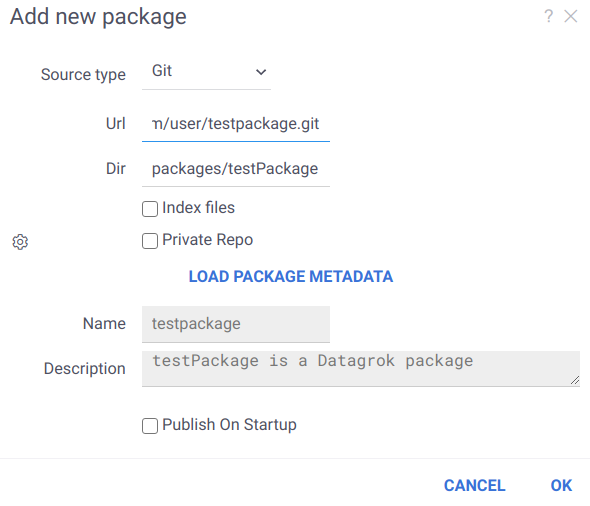

To publish a package from the repository, you need to open Manage | Packages | Add new package first. Once the window appears, choose Git as the source type, enter the URL to your repository, and specify the package directory relative to its root. Click on LOAD PACKAGE METADATA to get the package name and description.

Git Publish

If necessary, you can specify additional settings and then publish the package.

Continuous integration​

Standard package development includes the stages below:

  1. Development
  2. Build
  3. Test
  4. Publication

Most of the above steps can be automated using CI/CD tools. You can use our workflow in GitHub Actions as an example. It builds, tests, and publishes our public packages.

Tests in automation tools​

To test a package in CI, you need the following:

  1. Set up a stand for workflow. It is elementary to do using docker-compose
  2. Install the latest datagrok-tools
  3. Publish package to the stand
  4. Run tests using grok test
Install dependencies in GitHub Actions​

To install dependent grok packages in our workflow, you can use devDependencies in package.json We used an individual grokDependencies section earlier, but now this content is moved to devDependencies for a better CI process

{
  "devDependencies": {
    "@datagrok/chem": "latest"
  }
}
Skip tests in GitHub Actions​

To skip running tests in our workflow you can use skipCI in package.json

{
  "skipCI": "true"
}

Publication with automation tools​

Package publication is compatible with automation tools. You can pass your server URL and developer key explicitly through command line:

grok publish <url> -k <dev-key>

Sharing​

Just like other entities on the platform, packages are subject to privileges. When sharing with users and groups of users, you can specify the rights (for viewing and editing) and choose if you want to notify the person in question. These privileges can be managed not only from the user interface, but also directly from the package. To do that, you should specify the eligible user groups in the package.json file:

{
  "canEdit": [
    "Developers"
  ],
  "canView": [
    "All users"
  ]
}

To see packages available to you, click on Manage | Packages, or follow this link from outside the platform.

Connections​

Data connections in Datagrok allow users to connect to various data sources such as databases, cloud storage, and APIs. These connections are defined in JSON files stored under the /connections folder.

When defining a connection, users can include credentials for authentication. To ensure security, Datagrok provides a mechanism to substitute placeholders in the credentials section with environment variables during the deployment process.

For example, consider the following JSON file defining a connection to the CHEMBL database:

{
  "#type": "DataConnection",
  "name": "Chembl",
  "friendlyName": "CHEMBL",
  "parameters": {
    "server": "db.datagrok.ai",
    "port": 54325,
    "db": "chembl",
    "cacheResults": true
  },
  "credentials": {
    "parameters": {
      "login": "${CHEMBL_LOGIN}",
      "password": "${CHEMBL_PASSWORD}"
    }
  },
  "dataSource": "Postgres",
  "description": "CHEMBL DB",
  "tags": [
    "demo",
    "chem"
  ]
}

In this example, ${CHEMBL_LOGIN} and ${CHEMBL_PASSWORD} are placeholders for the login and password credentials. During deployment using the grok publish command, Datagrok automatically replaces these placeholders with the corresponding environment variables, such as process.env.CHEMBL_LOGIN and process.env.CHEMBL_PASSWORD, respectively.

Debugging​

See debugging for details.

Webpack-based packages​

If you deploy package in debug mode (--release isn't passed to grok publish) and source maps are properly generated (thus, the setting devtool of module.exports = section in webpack.config.js is present), you'd find your package sources in the top (root) section of the source tree by its decapitalized name.

Source-based packages​

Deploying such package locates it to the Datagrok host URI (such as https://dev.datagrok.ai) under api → packages/published/flies → <PACKAGE_NAME>/<VERSION>/_/<DIGIT>, where you'd set breakpoints.

Troubleshooting debugging​

  1. For webpack-based packages, make sure there is devtool: 'inline-source-map' in module.exports = section of webpack.config.js. Otherwise, source maps aren't generated and the IDE won't get source code locations.

  2. Make sure the required plugins / debuggers for Chrome debugging are installed in your IDE.

Package settings​

A package can have settings, which are either set programmatically or by users in the package's context panel. Every user group has its own settings configuration. In the interface, users will be able to adjust the settings for each group they belong to. To include a settings editor into a package, add the list of properties to the package.json file:

"properties": [
{
"name": "Property name",
"propertyType": "string", // `DG.TYPES_SCALAR` are supported
"choices": ["value #1", "value #2"], // Optional field with values of the property type
"defaultValue": "value #2", // Optional field with a default value (it should be in choices, if they are given)
"nullable": false                     // Optional field determining whether the property value can be null
}
]

To retrieve the state of package settings in code, use the getProperties method of DG.Package:

const props = await _package.getProperties();

The above call outputs an object where the keys are property names and the values are serialized property values. It's possible to customize the editor's appearance by defining a special editor function.

Documentation​

According to this study , in terms of the strategies used for understanding API documentation, different developers fall into several groups: systematic, opportunistic and pragmatic. These findings are consistent with our experience. For Datagrok's documentation, we have established an approach that enables developers from either of the above-mentioned groups to be productive.

  • Sample browser (Functions | Scripts | New JavaScript Script) is an interactive tool for browsing, editing, and running JavaScript samples that come with the platform. Samples are grouped by domain, such as data manipulation, visualization, or cheminformatics. They are short, clean examples of the working code using Grok API that can be copy-and-pasted into the existing solution. The samples are also cross-linked with the help system.
  • Grok API provides complete control over the platform. JS documentation is available.
  • Platform help explains the functionality from the user's point of view. Where appropriate, it is hyper-linked to samples and demo projects. In the near future, we plan to turn it into the community wiki, where users will be contributing to the content. The same web pages are used as an interactive help within the platform (you see help on the currently selected object).

Also, you can connect with fellow developers on either community forum or slack.
