Dashboards

Dashboards are projects like spaces that contain data (a dataframe) and the visualizations applied to it (a layout).

To create a dashboard:

1. Open a table to access the Table View.
2. In the Table View, you can:
   • Add viewers to visualize your data
   • Transform data as needed
   • Add filters
   • Customize the grid, such as color-coding grid columns
   • Optionally, add data from linked tables:
     • For viewers other than the grid, click the Gear () icon and choose the table in the Context Panel under Data > Table.
     • Inside the grid, you can show data from linked tables in cells.

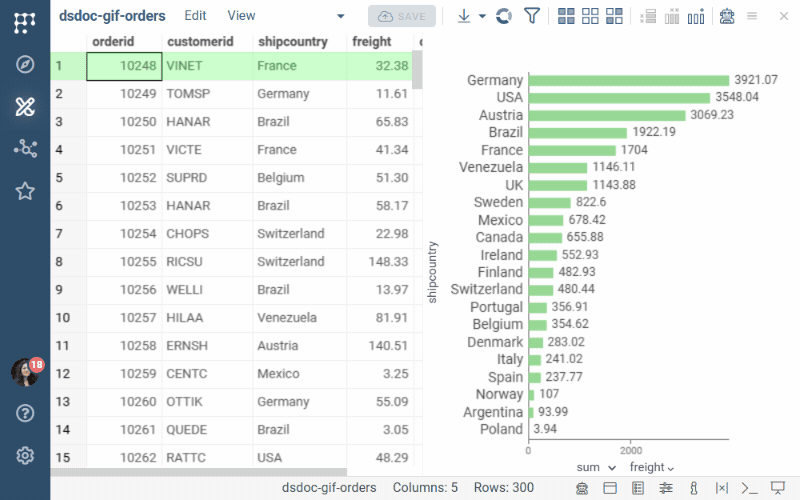

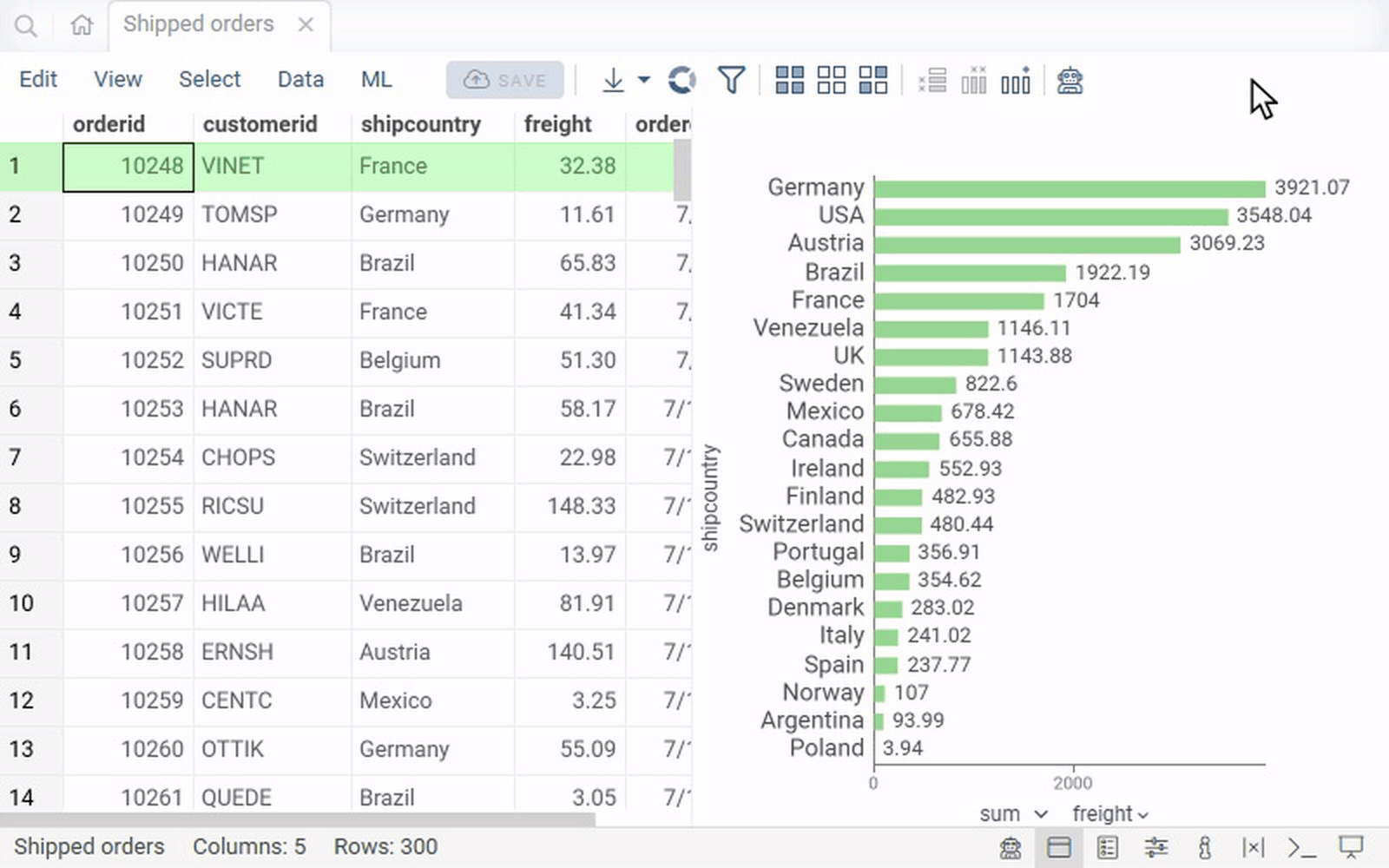

3. Save your dashboard.

   Note: When a table is generated by a function (such as a database query), you can enable the data sync. With this setting on, the function re-executes each time the project is opened. Learn more about dynamic dashboards.

For saved dashboards, you can embed a view into an external site as an iframe. Embedded views remain fully interactive and maintain the connection with the data from which it was created inside Datagrok.

How to embed a view

1. Open your project.
2. In the Table View's Top Menu, click the Hamburger icon and select Embed... This opens an Embed dialog.
3. From the dialog, copy the generated iframe and use it on your site.

Resources

YouTube videos:

Dynamic Dashboards

Building dynamic dashboards using database queries
