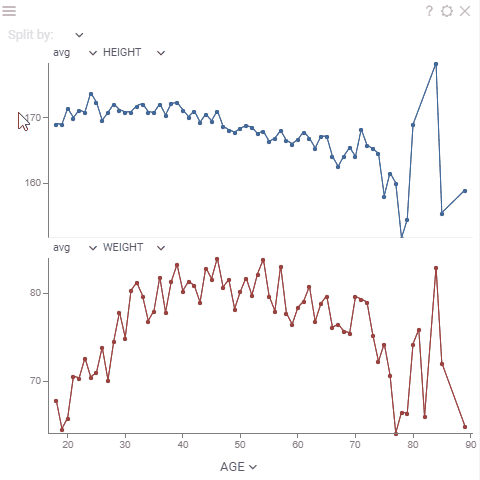

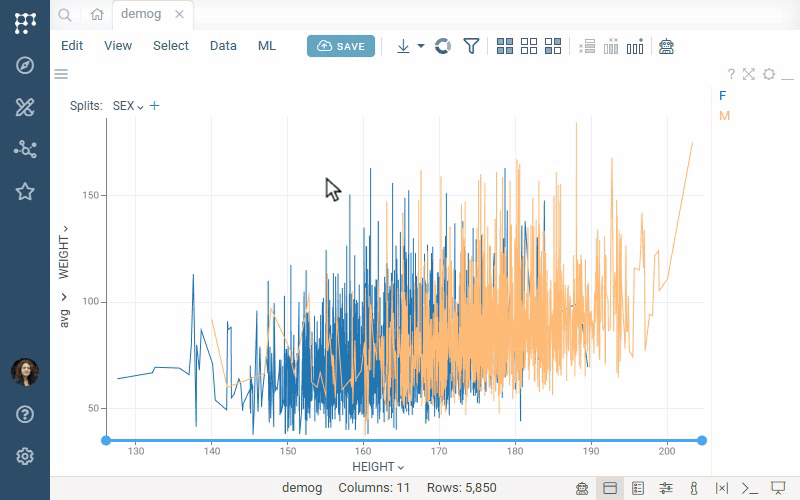

Line chart

Line chart shows data points as connected line segments. It is commonly used to track trends, changes over time, and compare multiple data series.

Developers: To add the viewer from the console, use: grok.shell.tv.addViewer('Line chart');

General:

Right click	Context menu
Alt+Mouse Drag	Zoom
Alt+F	Show in full screen
Shift+Mouse Drag	Select
Up, Down, Left, Right	Scroll
Ctrl -	Zoom out
Ctrl +	Zoom in
Shift+drag axes	Select segments

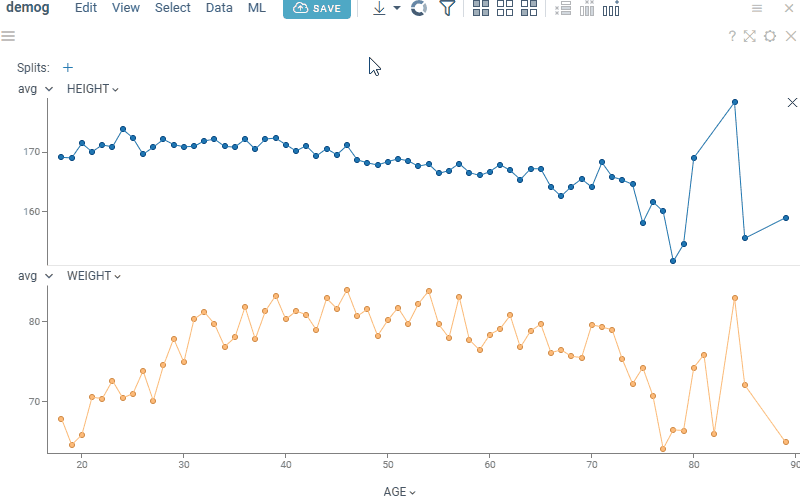

Custom aggregated tooltip

The line chart supports tooltips for both single and aggregated values. The default single-value tooltip is inherited from the grid. The default aggregated tooltip displays axis values and can be customized to show additional summary statistics.

To configure a custom aggregated tooltip, go to Context menu > Tooltip > Edit. This opens the aggregated tooltip dialog, where you can select the columns and corresponding aggregation functions. Available aggregation functions depend on the column type.

Supported aggregation functions

Column type	Aggregation functions
Numerical	min, max, sum, avg, med, geomean, count, values, unique, nulls, stdev, variance, skew, kurt, q1, q2, q3, first
Categorical	first, count, values, unique,nulls, values or unique count, concat all, concat unique, longest, shortest, most frequent, concat counts
Date	first, count, values, unique, nulls, min, max, avg, range

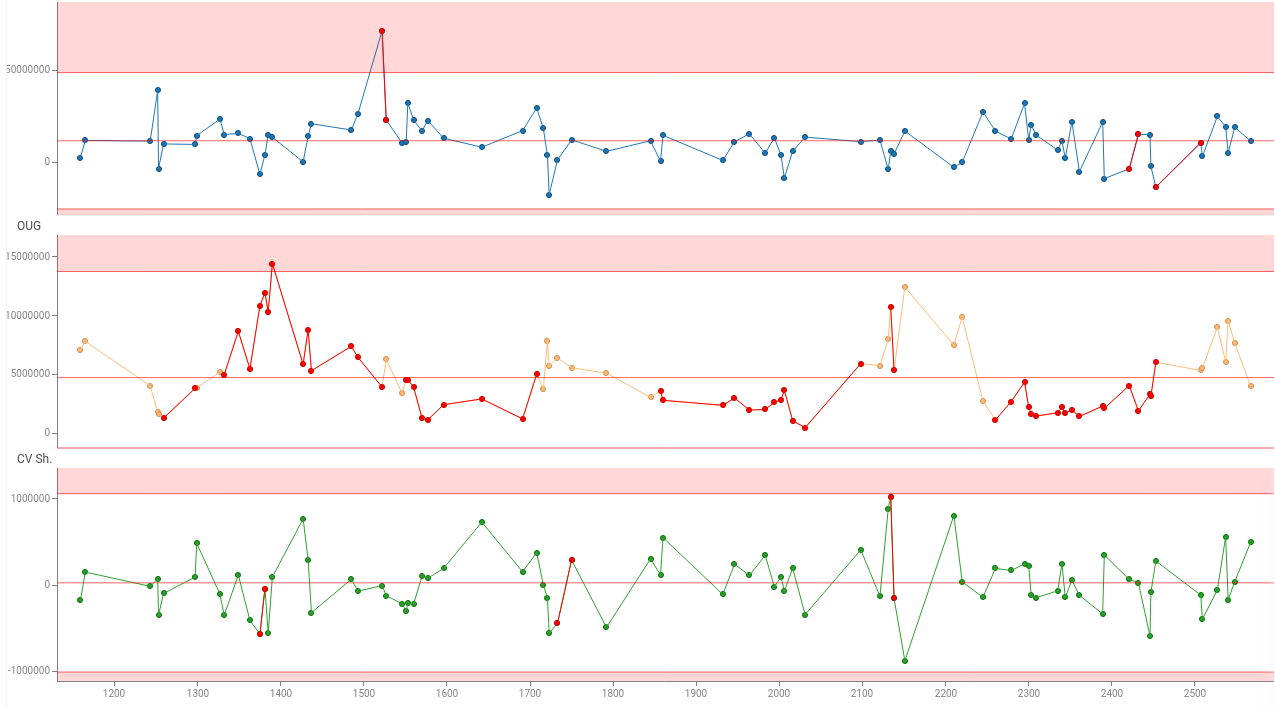

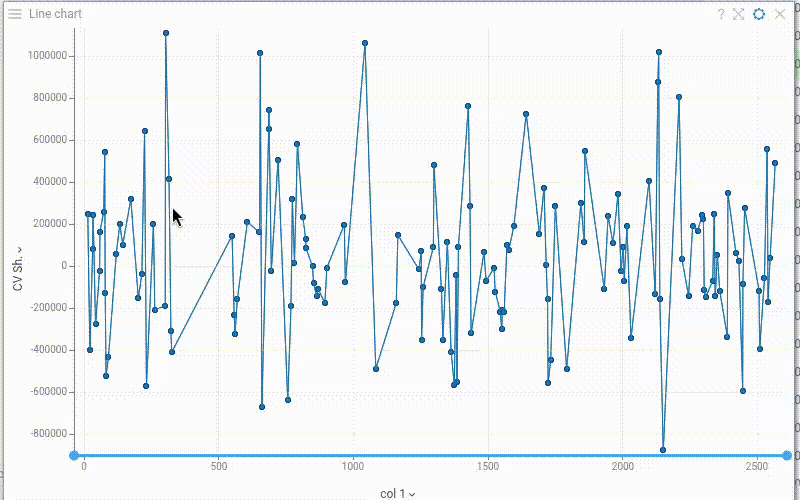

Statistical Process Control

Line chart supports Statistical Process Control (SPC) features out of the box, including contol limits and adjustable rules.

Videos

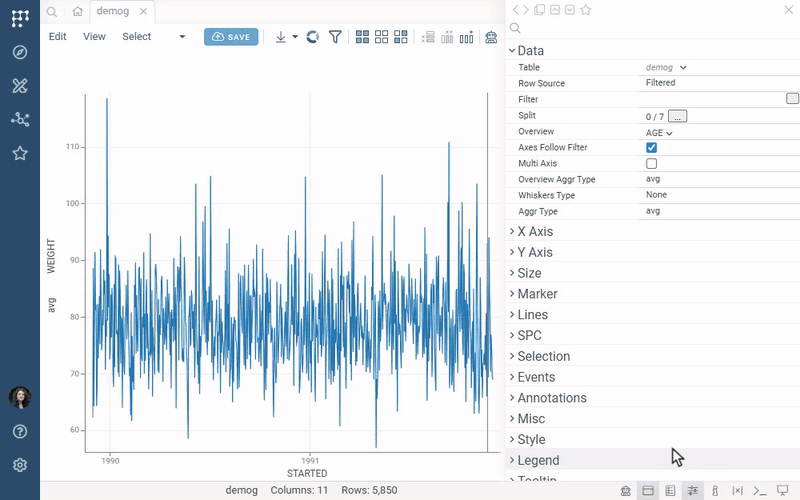

Properties

Property	Type	Description
Data
Split Column Names	list	A categorical column by which lines are split
Overview Column Name	string	Defines a Y column for the chart on the bottom used for zooming
Y Aggr Types	list	Aggregation types for all columns
Axes Follow Filter	boolean	When true, X axis is synchronized with the corresponding filter''s range values. Otherwise, when the filter is changed points are filtered out on a chart but the min-max stays.
Multi Axis	boolean	When true, multiple Y Columns charts get rendered on top of each other, otherwise they are stacked
Whiskers Type	string	Marker type for showing the distribution of the aggregated values when multiple values have the same X value
Aggr Type	string
Filter	string	Formula that filters out rows to show. Examples: ${AGE} > 20 or ${WEIGHT / 2)} > 100, ${SEVERITY} == ''Medium'', ${RACE}.endsWith(''sian'')
Table	string
General
Pack Categories	boolean
Overview Aggr Type	string
Overview Type	string
Left Panel	string	Show additional chart on the left
Chart Types	list
Line Color	number
Back Color	number
Axis Line Color	number
Axis Text Color	number
Marker Color	number
Mouse Over Line Color	number
Current Line Color	number
Show Top Panel	boolean	Shows top panel with the Split by selector
Show Close Link	boolean	Show the x close icon for each chart
X Axis Custom Tickmarks	list
Y Axis Custom Tickmarks	list
Inner Chart Margin Top	number
Inner Chart Margin Bottom	number
Outer Chart Margin Left	number
Outer Chart Margin Top	number
Outer Chart Margin Right	number
Outer Chart Margin Bottom	number
Show Dataframe Formula Lines	boolean	Control the visibility of dataframe-originated formula lines. Edit formula lines by right-clicking and selecting Tools | Formula Lines from the popup menu. Requires the PowerPack plugin.
Show Viewer Formula Lines	boolean	Control the visibility of dataframe-originated formula lines. Edit formula lines by right-clicking and selecting Tools | Formula Lines from the popup menu. Requires the PowerPack plugin.
Legend Visibility	visibilitymode
Legend Position	flexautoposition
Row Source	string	Determines the rows shown on the plot.
Allow Dynamic Menus	boolean
Show Context Menu	boolean	Properties common for all viewers todo: use code generation
Title	string
Description	string	Viewer description that gets shown at the Descriptor Position. Markup is supported.
Help	string	Help to be shown when user clicks on the ''?'' icon on top. Could either be in markdown, or a URL (starting with ''/'' or ''http'').
Description Position	flexposition
Description Visibility Mode	visibilitymode
X
X Column Name	string	Column to be used on the X axis
X Map	string	Time unit map function for x column (applicable to dates only).
X Axis Type	string
Segment Column Name	string	When defined, background is colored according to the segment column. Example: time series data with the stimuli column
Invert X Axis	boolean
Show X Axis	boolean
Show X Selector	boolean
X Axis Label Orientation	string
X Axis Tickmarks Mode	axistickmarksmode
Y
Y Column Names	list	Numerical columns to be used on Y axes. Depending on the *
Y Axis Type	string
Show Y Axis	boolean
Y Global Scale	boolean
Y Axis Title	string	Axis title to be shown on the left axis in multi-axis mode
Y2 Axis Title	string	Axis title to be shown on the left axis in multi-axis mode
Y Axis Tickmarks Mode	axistickmarksmode
Show Y Selectors	boolean
Show Aggr Selectors	boolean
Show Split Selector	boolean
Interpolation	lineinterpolationmode
Spline Tension	number
Marker
Markers Column Name	string	A categorical column that determines the shape of the markers.
Markers Map	string	Marker category time unit map function (applicable to dates only).
Marker Type	string
Marker Size	number
Show Markers	visibilitymode	A boolean column that determines whether to show markers.
Markers Visibility Column Name	string
Selection
Show Current Row Line	boolean	Show vertical line reflecting the position of the current row See also Current Line Color
Show Mouse Over Category	boolean	Determines whether the line is highlighted when you hover over the corresponding category. Example: Split by = SEX and you hover over the Male category in the filter.
Show Mouse Over Row Line	boolean	Show vertical line reflecting the position of the mouse-over row See also Mouse Over Line Color
Statistical process control
Show Statical Process Control	boolean	Shows/hides upper and lower control limits, and Western Electric rules.
Show Control Limits	boolean	Shows/hides upper and lower control limits.
Show Sigma1	boolean
Show Sigma2	boolean
Show Average	boolean
Lower Control Limit	number
Upper Control Limit	number
Show Outlier	boolean	Rile 1: One point is more than 3 standard deviations from the mean. When sample(s) is grossly out of control.
Show Bias	boolean	Rule 2: Nine (or more) points in a row are on the same side of the mean. Some prolonged bias exists.
Show Consistent Trend	boolean	Rule 3: Six (or more) points in a row are continually increasing (or decreasing). When a trend exists.
Show Oscillation	boolean	Rule 4: Fourteen (or more) points in a row alternate in direction, increasing then decreasing. This much oscillation is beyond noise. Note that the rule is considered with directionality only. The position of the mean and the size of the standard deviation have no bearing.
Show Medium Shift	boolean	Rule 5:Two (or three) out of the three points in a row are more than 2 standard deviations from the mean in the same direction. There is a medium tendency for samples to be mediumly out of control. The side of the mean for the third point is unspecified.
Show Sustained Shift	boolean	Rule 6: Four (or five) out of five points in a row are more than 1 standard deviation from the mean in the same direction. There is strong tendency for samples to be slightly out of control. The side of the mean for the fifth point is unspecified.
Show Suppressed Variation	boolean	Rule 7: Fifteen points in a row are all within 1 standard deviation of the mean on either side of the mean. With 1 standard deviation, greater variation would be expected.
Misc
Axes Use Column Format	boolean	Use column format for axis labels, where possible
Show Aggr Type Selector	boolean
Style
Auto Layout	boolean
Segments Font	string
Line Width	number
Line Transparency	number
Overview Height	number	Height of the overview chart
Histogram Width	number
Auto Axis Size	boolean	If true, X Axis Height is calculated automatically to fit the required precision. If false, the specified X Axis Height
Annotation Font	string
X Axis Height	number	Requires Auto Axis Size to be turned off.
Line Coloring Type	string
Axis Font	string
Selected Rows Color	number
Statistical Process Line Color	number
Statistical Process Area Color	number
Statistical Process Rule Color	number
Controls Font	string	Viewer controls elements font.
Tooltip
Show Tooltip	string	Controls scatter plot tooltip visibility
Show Labels	visibilitymode
Row Tooltip	string	Newline-separated list of column names to be used in a tooltip. Requires showTooltip to be enabled.
Row Group Tooltip	string
Legend
Add Y Columns To Legend	boolean	When selected, column names are added to the legend. Requires Multi Axis to be enabled.
Annotation regions
Show Viewer Annotation Regions	boolean
Show Dataframe Annotation Regions	boolean
Lasso Tool	boolean	Enables lasso region drawing mode (instead of polygon drawing default one).
Description
Show Title	boolean
