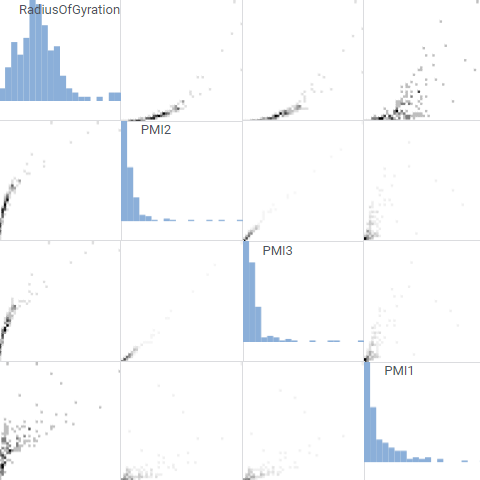

Matrix plot
Use Matrix Plot to assess the relationship among many pairs of columns at the same time.
Developers: To add the viewer from the console, use:
grok.shell.tv.addViewer('Matrix plot');
General:
| Right click | Context menu |
| Alt+F | Show in full screen |
Videos
Properties
| Property | Type | Description |
|---|---|---|
| General | ||
| X Column Names | list | Columns to use on the X axis |
| Y Column Names | list | Column to use on the Y axis |
| Font | string | |
| Cell Plot Type | string | |
| Show X Axes | boolean | |
| Show Y Axes | boolean | |
| Back Color | number | |
| Inner Viewer Look | lookandfeel | |
| Row Source | string | Determines the rows shown on the plot. |
| Allow Dynamic Menus | boolean | |
| Show Context Menu | boolean | Properties common for all viewers todo: use code generation |
| Title | string | |
| Description | string | Viewer description that gets shown at the Descriptor Position. Markup is supported. |
| Help | string | Help to be shown when user clicks on the ''?'' icon on top. Could either be in markdown, or a URL (starting with ''/'' or ''http''). |
| Description Position | flexposition | |
| Description Visibility Mode | visibilitymode | |
| Style | ||
| Auto Layout | boolean | |
| Data | ||
| Filter | string | Formula that filters out rows to show. Examples: ${AGE} > 20 or ${WEIGHT / 2)} > 100, ${SEVERITY} == ''Medium'', ${RACE}.endsWith(''sian'') |
| Table | string | |
| Description | ||
| Show Title | boolean |
