Parallel coordinates plot

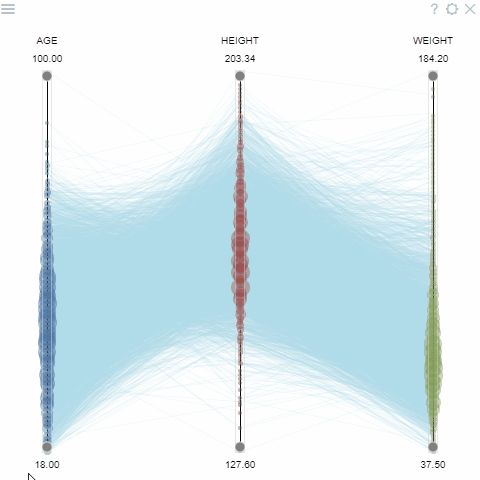

Parallel coordinates is a common way of visualizing high-dimensional geometry and analyzing multivariate data. To show a set of points in an n-dimensional space, a backdrop is drawn consisting of n parallel lines, typically vertical and equally spaced. A point in n-dimensional space is represented as a polyline with vertices on the parallel axes; the position of the vertex on the i-th axis corresponds to the i-th coordinate of the point. This visualization is closely related to time series visualization, except that it is applied to data where the axes do not correspond to points in time, and therefore do not have a natural order. Therefore, different axis arrangements may be of interest.

To change columns, set "Column Names" via the context panel. To rearrange columns, drag column name into the desired location.

Developers: To add the viewer from the console, use: grok.shell.tv.addViewer('PC plot');

General:

Right click	Context menu
Alt+F	Show in full screen
Drag column name	Rearrange columns
Drag column filter	Filter data

Videos

Properties

Property	Type	Description
Data
Show Filtered Out Lines	boolean	Whether the filtered out values are shown. See also Filtered Out Line Color
Transformation	string
Filter	string	Formula that filters out rows to show. Examples: ${AGE} > 20 or ${WEIGHT / 2)} > 100, ${SEVERITY} == ''Medium'', ${RACE}.endsWith(''sian'')
Table	string
Value
Column Names	list	Columns to use
Log Columns Column Names	list	Columns where logarithmic axis is used. Should be a subset of Column Names.
Normalize Each Column	boolean	Determines the way a value is mapped to the vertical scale. TRUE: bottom is column minimum, top is column maximum. Use when columns contain values in different units FALSE: uses the same scale. This lets you compare values across columns if units are the same (for instance, use it for tracking change over time).''
Color
Color Column Name	string
Color Map	string	Categorical coloring time unit map function (applicable to dates only).
Show Color Selector	boolean
Color Axis Type	string
Invert Color Scheme	boolean
Color Min	number
Color Max	number
Selection
Show Current Line	boolean
Show Mouse Over Line	boolean
Show Mouse Over Row Group	boolean
Show All Lines	boolean	Either all lines are shown or only current line, mouse over line, selected ones.
General
Show Filters	boolean	Whether the in-chart filters are visible
Back Color	number
Selected Rows Color	number
Filtered Out Line Color	number
Missing Value Color	number
Line Color	number
Current Line Color	number
Mouse Over Line Color	number
Show Density	boolean
Show Min Max	boolean
Show Labels	boolean
Horz Margin	number
Legend Visibility	visibilitymode
Legend Position	flexautoposition
Row Source	string	Determines the rows shown on the plot.
Allow Dynamic Menus	boolean
Show Context Menu	boolean	Properties common for all viewers todo: use code generation
Title	string
Description	string	Viewer description that gets shown at the Descriptor Position. Markup is supported.
Help	string	Help to be shown when user clicks on the ''?'' icon on top. Could either be in markdown, or a URL (starting with ''/'' or ''http'').
Description Position	flexposition
Description Visibility Mode	visibilitymode
Style
Current Line Width	number
Auto Layout	boolean
Line Width	number
Mouse Over Line Width	number
Min Max Height	number
Labels Orientation	textorientation
Min Max Orientation	textorientation
Axis Font	string
Linear Color Scheme	list
Categorical Color Scheme	list
Whisker Color	number
Controls Font	string	Viewer controls elements font.
Box Plot
Density Style	string
Show Interquartile Range	boolean
Show Upper Dash	boolean
Show Lower Dash	boolean
Show Mean Cross	boolean
Show Median	boolean
Show Circles	boolean
Whisker Line Width	number
Interquartile Line Width	number
Bins	number
Description
Show Title	boolean
